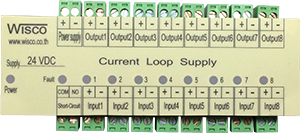

CS20: Current Loop Supply

- Power Supply for 2-wire Transmitter

- Supplies 8 Current Loops

- Current Limiting

- Short Circuit Protected (Relay Alarm)




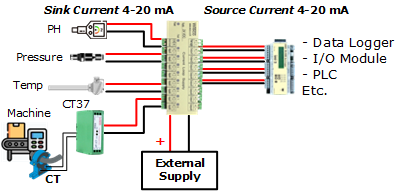

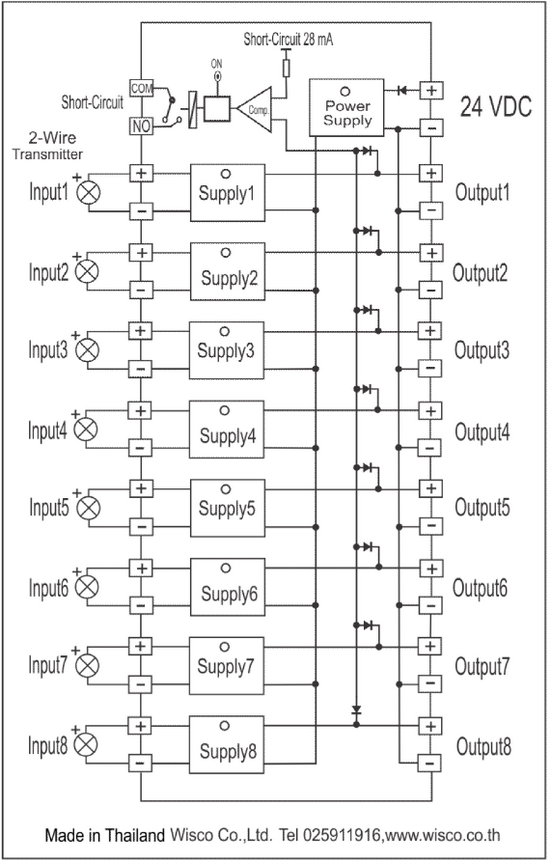

            The Current Loop Supply CS20 supplies power to 2 - wire transmitters (8 Channels) and generates output signal 4 - 20 mA. Current limiting (to protect against transmitter wiring short circuits) is also provided.

Specifications

Analog Input

Number of Channel:

8 Channels

Input Type:

Current (24 VDC Loop-Powered)

Input Range:

4 to 20 mA

Analog Output

Number of Channel:

8 Channels

Output Type:

Current

Output Range:

4 to 20 mA

Short Circuit Duration:

28 mA

Relay Output

Number of Channel:

1 Channel

Relay Type:

N.O.

Contact Rating:

3 A @ 250 VAC/24 VDC

Power Requirements

Power Supply:

24 VDC (500 mA OK.)

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W62 x H142 x D50 mm.

Mounting:

DIN Rail

Warranty

Warranty Period:

5 Year
Ordering
Ordering Information:
Example CS20
Packagelist

Package Checklist

1. CS20

Downloads
Datasheet:
application/pdf iconCS20 Specification ENG.pdf
