RS20: Digital Remote Setpoint

- Manual Adjust

- Output 4 to 20 mA, 0 to 10 VDC, 1 to 5 VDC

- Programmable Display

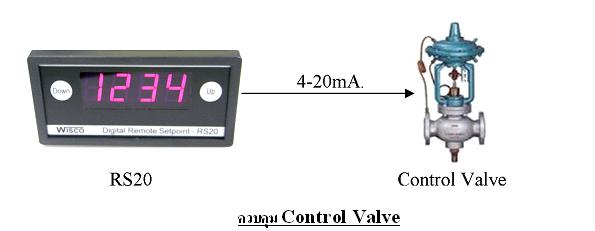

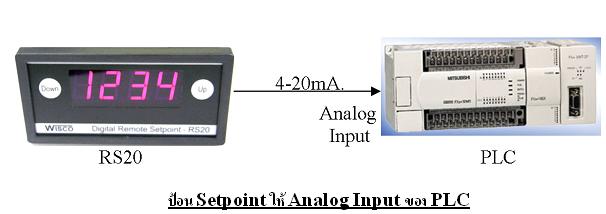

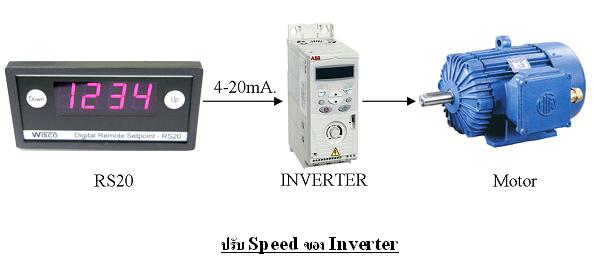

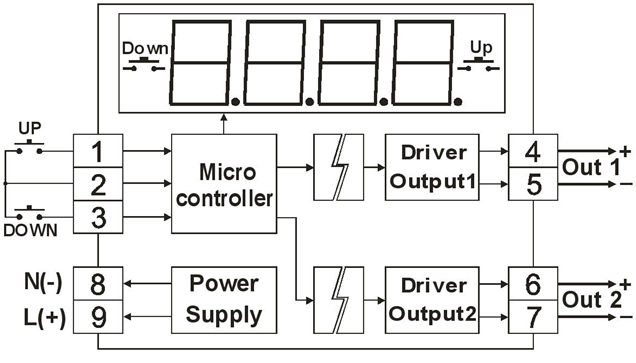

            Digital Remote Setpoint RS20 เป็นอุปกรณ์ที่ควบคุมการเพิ่มหรือลดสัญญาณ Analog Output โดยใช้สวิทซ์ กด “UP” และ “DOWN” เมื่อกดสวิทซ์ “UP” ค่า Analog Output จะค่อยๆเพิ่มขึ้น เมื่อกดสวิทซ์ “DOWN” ค่า Analog Output จะค่อยๆ ลดลง และเมื่อไม่กดสวิทซ์ ค่า Analog Output จะค้างไว้ที่ค่าสุดท้ายที่กดสวิทซ์ Scaling ของ Display สามารถ Program ได้ตามความต้องการใช้งาน RS20 เหมาะสำหรับใช้เป็นอุปกรณ์ปรับ Setpoint ของ Controller,Inverter, หรือ PLC จากระยะไกลๆ





Panel Cutout

Specifications

Monitor

Display:

4 Digits, 14.3 mm. (7-segment)

Display Color:

Red (std)

Digital Display Range:

Adjustable display scaling (-) 999 to 9999

Decimal Point:

3 position or no display

Digital Input

Number of channel:

2 Channels

Sensor Type:

Switch Contact (Opto Isolated)

Dry Contact:

ON : Short to GND

OFF : Open

Analog Output

Number of channel:

2 Channels (Output 2 is optional )

Output type:

Current, Voltage

Output range:

Current (0 to 20, 4 to 20 mA)

Voltage (0 to 5, 1 to 5, 0 to 10, (-) 10 to 10 VDC)

Output Impedance:

Current Max load 1 kΩ

Voltage Min load 1kΩ

DAC Resolution:

Max. 12 Bit (0 to 4095)

Starting Point:

Programmable

Power Requirements

Power Supply:

110, 220 VAC

12, 24, 110, 125 VDC (Optional)

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W96 x H48 x D120 mm.

Mounting:

Panel flush mounting

Wiring:

Screw Terminals

Warranty

Warranty Period:

5 year

Ordering
Ordering Information: Specify analog output1, analog output2(optional), power supply
Example RS20/4-20 mA/0-10 VDC/220 VAC



Packagelist

Package Checklist

1. RS20

Downloads
Datasheet:
