RT95: RTD Transmitter

- Linearizing for Pt100 sensor

- Programmable range

- Isolated input to output to Power Supply

- True lead length compensation

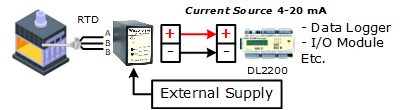

            RTD Transmitter RT95 are compactly designed for converting the variations of resistance in a Pt100 temperature sensor to a linearized and isolated DC. voltage or current output. They provide constant current excitation and true lead length compensation when used with a 3-wire RTD, which can be located at a considerable distance from the transmitter.

Specifications

RTD Input

Number of channel:

1 Channel

Input type:

Pt100 DIN or JIS (3 Wire Connection)

Input range:

Rangeable zero from - 100 °C to +100 °C

Rangeable span from 15 °C to 500 °C

Other types of RTD input available Cu 100, Pt 1000

Input impedance:

Lead wire resistance 5 ohm/wire max.

Analog Output

Number of channel:

1 Channel

Output type:

Current, Voltage

Output range:

Current (4 to 20 mA)

Voltage (0 to 5, 1 to 5, 0 to 10 VDC)

Linearity:

< ± 0.2% of span

Output Load Resistance:

Current (Max 1000 Ω load)

Voltage (Min. 1000 Ω load)

Isolation voltage:

500 VAC Between input,output and power supply (1min. test)

Power Requirements

Power Supply:

100, 110, 220 VAC

24 VDC (Optional)

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W50 x H70 x D130mm.

Mounting:

Wall or DIN rail

Connection:

Plug-in 11 pins socket

Warranty

Warranty Period:

5 year
Ordering
Ordering Information: Specify sensor type, input range, output, power supply
Example RT95/Pt 100/0-200 C/4-20 mA/220 VAC
Packagelist

Package Checklist

1. RT95

Downloads
Datasheet:
application/pdf iconRT95 Specification.pdf
