RS95: Remote Setpoint

- Output 4-20 mA, 0-10 VDC, 1-5 VDC

- Remote Setpoint for Inverter

- PLC Analog Output

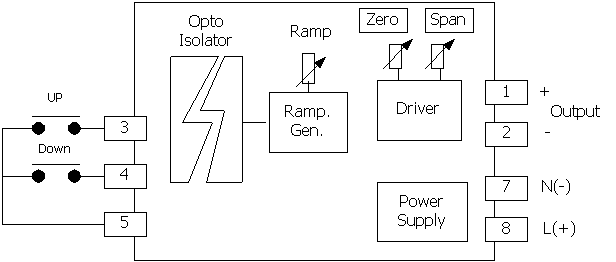

            Remote Setpoint RS95 is an instrument that control analog output by two switch. If “up” switch is closed the analog output will increase at a constant ramp time. And if “down” switch is closed the analog output will decrease. The ramp time can be Adjust at the front panel.

Specifications

Digital Input

Number of channel:

2 Channels

Sensor Type:

Switch Contact (Opto Isolated)

Dry Contact:

ON : Short to GND

OFF : Open

Analog Output

Number of channel:

1 Channel

Output type:

Current, Voltage

Output range:

Current (4 to 20 mA)

Voltage (1 to 5, 0 to 10)

Ramp Time:

Adjustable 3 - 45 sec (0-100% output)

Accuaracy:

± 0.4 % of span.

Power Requirements

Power Supply:

110, 220 VAC

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W50 x H70 x D130 mm.

Mounting:

Wall or DIN rail

Connection:

Plug-in 11 pins socket

Warranty

Warranty Period:

5 year

Ordering
Ordering Information: Specify Output, Power Supply
Example RS95/4-20 mA/220 VAC



Packagelist

Package Checklist

1. RS95
