RC23: RS-232 to RS-485/ RS-422 Converter

- 2-Wire / 4-Wire Operation

- 115.2 kbps Data Rate

- Opto Isolation

- Built-In Power Supply

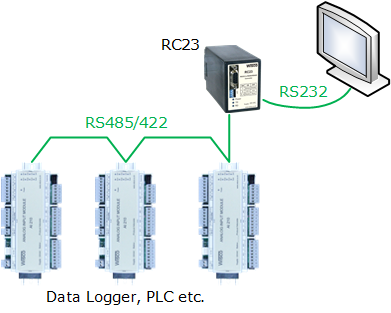

RS-232 to RS-485/RS-422 Converter RC23 optically isolates and converts unbalanced, Full/Half-Duplex RS-232 signals to optically isolated, balanced, Full/Half-Duplex RS-422 or RS-485 signal at baud rate up to 115.2 kbps. This unit also surge suppress the RS-422/RS-485 lines. Features send data control circuitry so no software control of handshake lines is required in RS-485 Mode.

Specifications

Serial Interface
Serial Standards:	RS-232, RS-485/RS-422 Screw Terminals on Base Sockets
Loading:	RS485/422 Max 32 Unit
Distance:	RS232 Length 15 m.
	RS485/422 Length 1 Km.

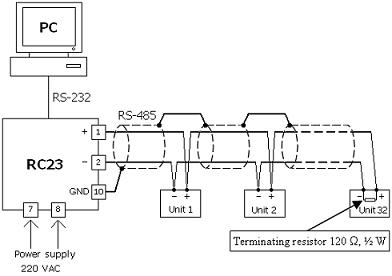

Operating Mode:	RS-485 (2-Wire, Half Duplex)
	RS-485 (4-Wire, Half Duplex)

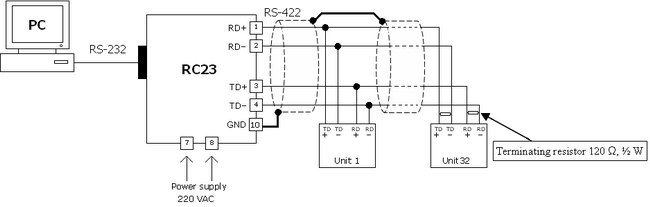

	RS-422 (4-Wire, Full Duplex)
Data Rate:	Up to 115.2 kbps
Isolation:	Opto Isolation, 2000 VAC

Power Requirements
Power Supply:	110 VAC, 220 VAC
	12 VDC, 24 VDC (Optional)

Environmental Limits
Operating Temperature:	0 to 55 °C
Operating Humidity:	5 to 95 %RH
Storage Temperature:	0 to 70 °C

Physical Characteristics
Dimension:	W50 x H70 x D130 mm
Mounting:	Wall or DIN rail
Connection:	Plug-in 11 pins socket

Warranty
Warranty Period:	5 Year

Ordering

Ordering Information:	Specify Power Supply
Example	RC23/220VAC
