RS2000:Remote Switch

- 8 Touch Buttons

- 8 Digital Output

- 8 LED Lamp

- 7 Color Selectable

- Programmable Flashing

            Remote Switch RS2000 เป็นอุปกรณ์ที่ใช้ควบคุม Switch เพื่อ ปิด-เปิด อุปกรณ์ไฟฟ้าจากระยะไกล โดยผ่านทางสาย 2-Wire RS485 มี LED Lamp 8 ดวง สำหรับแสดงสถานะของ Output ซึ่งสามารถเลือกแสดงได้ 7 สี และมีปุ่มกดเพื่อควบคุม Digital Output ปลายทางอีก 8 ปุ่ม โดยจะทำงานร่วมกับ Digital Input/Output Module DIO2100 เท่านั้น ตัวอย่างการใช้งาน เช่น แสดงสภาวะการทำงานของเครื่องจักร, สภาวะการเกิด Alarm เป็นต้น และเมื่อใช้งานร่วมกับอุปกรณ์ RC36 จะสามารถทำงานเป็น Wireless Switch ได้

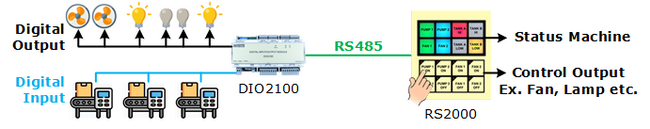

การต่อใช้งานร่วมกับ DIO2100 ผ่านทาง RS485

การต่อใช้งานร่วมกับ Wireless (RC36) ผ่านทาง RS485

การเชื่อมต่อผ่านทาง Ethernet (MC330)

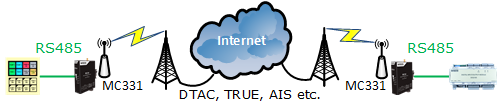

การเชื่อมต่อผ่านทาง Internet (MC331)

หมายเหตุ: สามารถสั่งพิมพ์หน้าปัทม์ตัวหนังสือตามแบบที่ต้องการได้ (อักษรในภาพ: Angsana New, Size: 24 px)

Specifications

Touch

Touch Button:

Buttons

Lamp

Number of Lamp:

8 LED Lamps

Color:

Green, Red, Yellow, Blue, Cyan, Magenta, White

Flashing:

Programmable

Relay Output

Number of Channel:

8 Channels

Relay Type:

N.O.

Contact Rating:

5 A @ 250 VAC

5 A @ 30 VDC

Power Requirements

Power Supply:

24 VDC

Power Consumption

Standby:

30 mA @ 24 VDC

Operate:

550 mA @ 24 VDC

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W174 x H194 x D65 mm.

Mounting:

Panel Flush Mounting

Warranty

Warranty Period:

5 year

Ordering
Ordering Information:
Example RS2000
Packagelist

Package Checklist

1. RS2000
