RP23: RS-485/RS422 Repeater

- Extend RS-485/RS-422 Distance

- 115.2 kbps Data Rate

- Galvanic Isolation



            RS-485/RS-422 Repeater RP23 is designed as a robust repeater for industrial applications where galvanic isolation is important. It can be used to extend both the distance and number of nodes on RS-485 (2-Wire) and RS-422 (4-Wire) network. Galvanic Isolation helps eliminate noise and protects equipment from destructive transients found in industrial application.

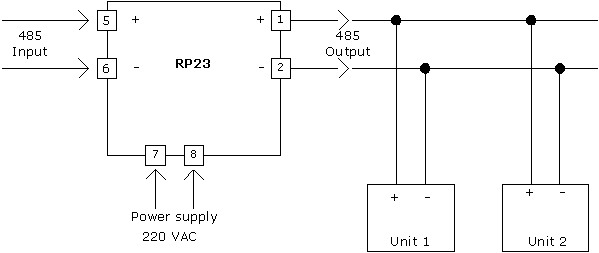

การเชื่อมต่อแบบ RS-485

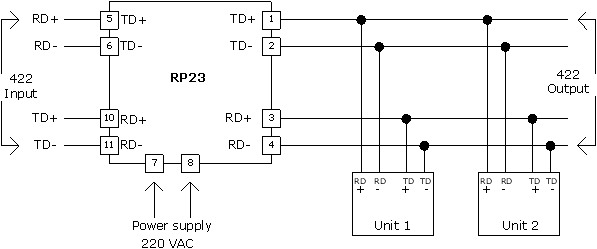

การเชื่อมต่อแบบ RS-422

Specifications

Serial Interface

Serial Standards:

RS485/422 (Isolated)

Distance:

RS-485/RS-422 up to 1.2 km on each side

Data Rate:

Up to 115.2 kbps

Operating Mode:

RS-485 (2-Wire Half-Duplex)

RS-422 (4-Wire Full-Duplex)

Isolation:

Between Input, Output and Power Supply

Power Requirements

Power Supply:

110 VAC, 220 VAC

24 VDC (Optional)

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W50 x H70 x D130 mm

Mounting:

Wall or DIN Rail

Connection:

Plug-In 11 pins Socket

Warranty

Warranty Period:

5 Year
Ordering
Ordering Information: Specify Power Supply
Example RP23/220VAC
Packagelist

Package Checklist

1. RP23

Downloads
Datasheet:
application/pdf iconRP23 Specification.pdf
