RT37: RTD Transmitter

- Wide programmable input range

- Linearized

- Isolated input to output

- Compact DIN rail mount enclosure

- High accuracy

- Low cost

- Easy to install



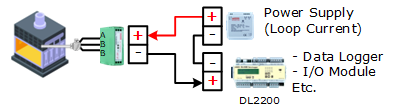

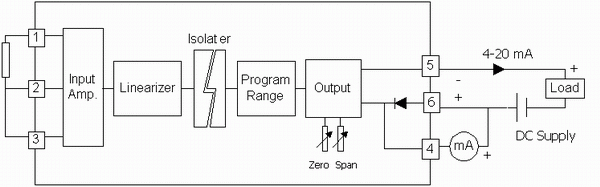

Specifications

RTD Input

Number of Channel:

1 Channel

Input Type:

RTD (PT100) DIN or JIS (3 wire type)

Input Range:

Rangeable zero from (-)100 °C to 100 °C

Rangeable span from 15 °C to 500 °C

Other types of RTD input available. eg. Cu 100, Pt 1000

Input impedance:

Lead wire resistance 10 Ω/wire max.

Analog Output

Number of channel:

1 Channel

Output type:

Current

Output range:

4 to 20mA (2 Wire)

Loop powered:

12 to 35 VDC

Linearity:

< ± 0.2 % of span

Accuracy:

< ± 0.2 % of span

Ambient drift:

< ± 0.02% / °C of span

Output Impedance:

Max. 600 Ω @ 24 VDC (50 Ω/V above 12 VDC)

Current Limitation:

< 26 mA

Isolation voltage:

500 VAC. input/output isolation (1min. test)

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W22 x H80 x D85 mm.

Mounting:

DIN or EN rail

Warranty

Warranty Period:

5 year

Ordering
Ordering Information:
Example RT37



Packagelist

Package Checklist

1. RT37

Downloads
Datasheet:
