VT95: Voltage Transducer

- Voltage Input 0-150 VAC, 0-300 VAC

- Analog Output 4-20 mA, 0-5 VDC, 0-10 VDC



            Voltage Transducer VT95 is designed for converting sinusoidal alternating voltage into a load dependent DC output signal proportional to the measured RMS input values.

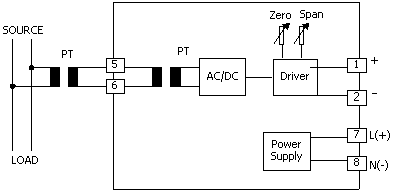

Specifications

Input

Number of channel:

1 Channel

Input type:

Voltage

Input range:

0 to 150, 0 to 300 VAC

(Overange 120% continuously, 150% for 10 sec)

Input loss:

< 0.3 VA

Analog Output

Number of channel:

1 Channel

Output Type:

Current, Voltage

Output Range:

Current Max 0 to 1 mA (Load Resistance 10 KΩ)

Current Max 0 to 5 mA (Load Resistance 2 KΩ)

Current Max 0 to 10 mA (Load Resistance 1 KΩ)

Current Max 0 to 20 mA (Load Resistance 600 Ω)

Current Max 4 to 20 mA (Load Resistance 600 Ω)

Voltage Min 0 to 10 mVDC (Load Resistance 500 Ω)

Voltage Min 0 to 100 mVDC (Load Resistance 500 Ω)

Voltage Min 0 to 1 VDC (Load Resistance 500 Ω)

Voltage Min 0 to 5 VDC (Load Resistance 1 KΩ)

Voltage Min 1 to 5 VDC (Load Resistance 1 KΩ)

Voltage Min 0 to 10 VDC (Load Resistance 2 KΩ)

Linearity:

< ± 0.5 % of span

Power Requirements

Power Supply:

110, 220 VAC

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Dimension:

W50 x H70 x D130 mm.

Mounting:

Wall or DIN rail

Connection:

plug - in Wiring Screw terminals on base socket

Warranty

Warranty Period:

5 year
Ordering
Ordering Information: Specify Input, Output, Power supply
Example VT95/0-150 VAC/4-20 mA/220 VAC
Packagelist

Package Checklist

1. VT95

Downloads
Datasheet:
application/pdf iconVT95 Specification.pdf
